forbidden (BIGASUO N100 Laptop)

Summary

TODO

Notes

TODO

Hardware

Make Shenzhen Kejinming Electronics Co.
Year 2023
Model K160
Chassis K160
Power Supply 12V 3A (Barrel or USB C PD)
Processor Intel N100
Memory 8GB DDR4-2666 (Transcend TS1GSH64V6B)
Ports 2x USB A 2.0
  RJ-45 LAN
  3.5mm Audio
  USB A 3.0
  Mini HDMI
  USB C 3.0
Graphics Intel UHD Graphics
Storage 256GB Kowin M.2 SATA SSD KWCMS100256
Display 16" 1920x1200 IPS
Int. Peripherals Fn-Link 6221C-PUC (Realtek RTL8821CE) Wifi
  Realtek Gigabit Ethernet
Ext. Peripherals
Dimensions
Length/Depth 24.7 cm
Width 35.7 cm
Height/Thickness 2.3 cm
Weight 4.7 kg (10 lbs 4 oz)

Software

Operating System Debian testing (trixie)
Unique applications

Log

[2024-03-11 Mon] Laptop for review

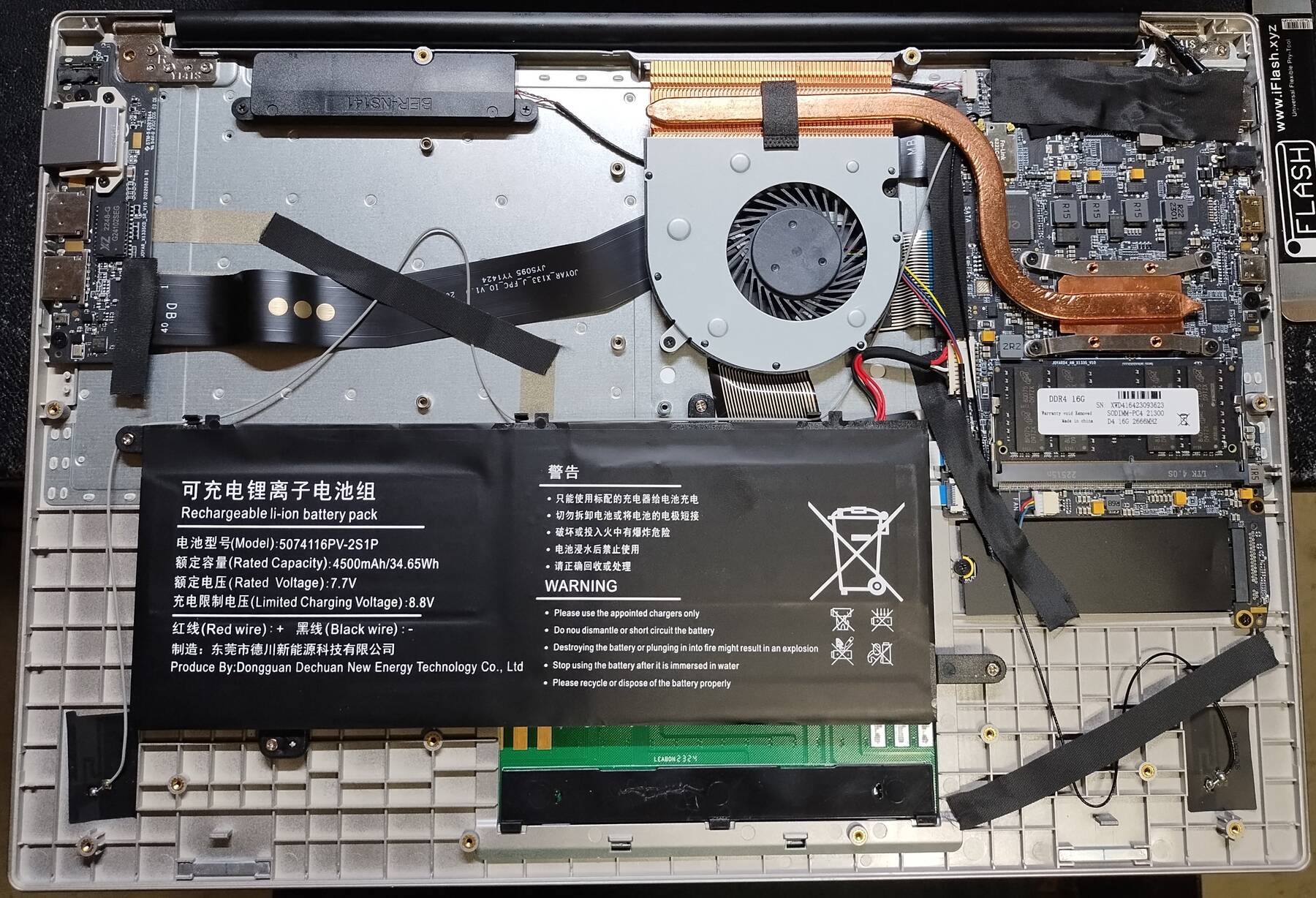

I received this laptop for review. It was sold under the brand 'BIGASUO', but the paperwork references eitack.com, and the machine itself is marked "Shenzhen Kejinming Electronics Co." Model K160.

A few things are less than good such as:

  • Windows 11 license wouldn't activate, nor would the replacement key they sent me
  • Creaky flexible case
  • Rumbly fan

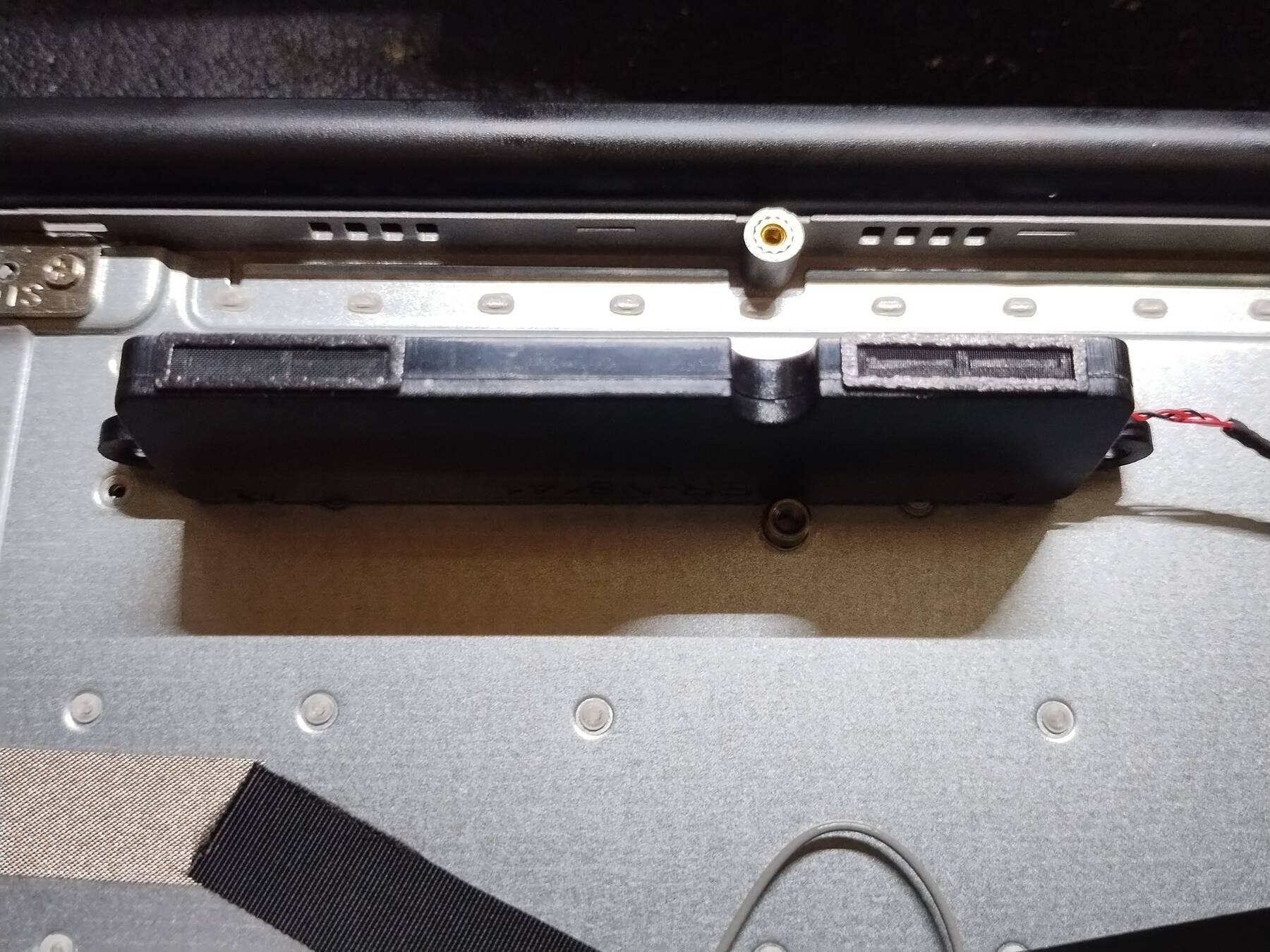

  • Stereo speakers, but in a tiny 7cm module
  • 4500 mAh battery rather than the 5000 claimed
  • 1x1 WiFi (433Mbps max)
  • Mini-HDMI despite being a pretty large machine

Still it has a few niceties.

  • The N100 is newish and can be pretty performant for a quad core low power CPU.
  • 16" 1920x1200 IPS display

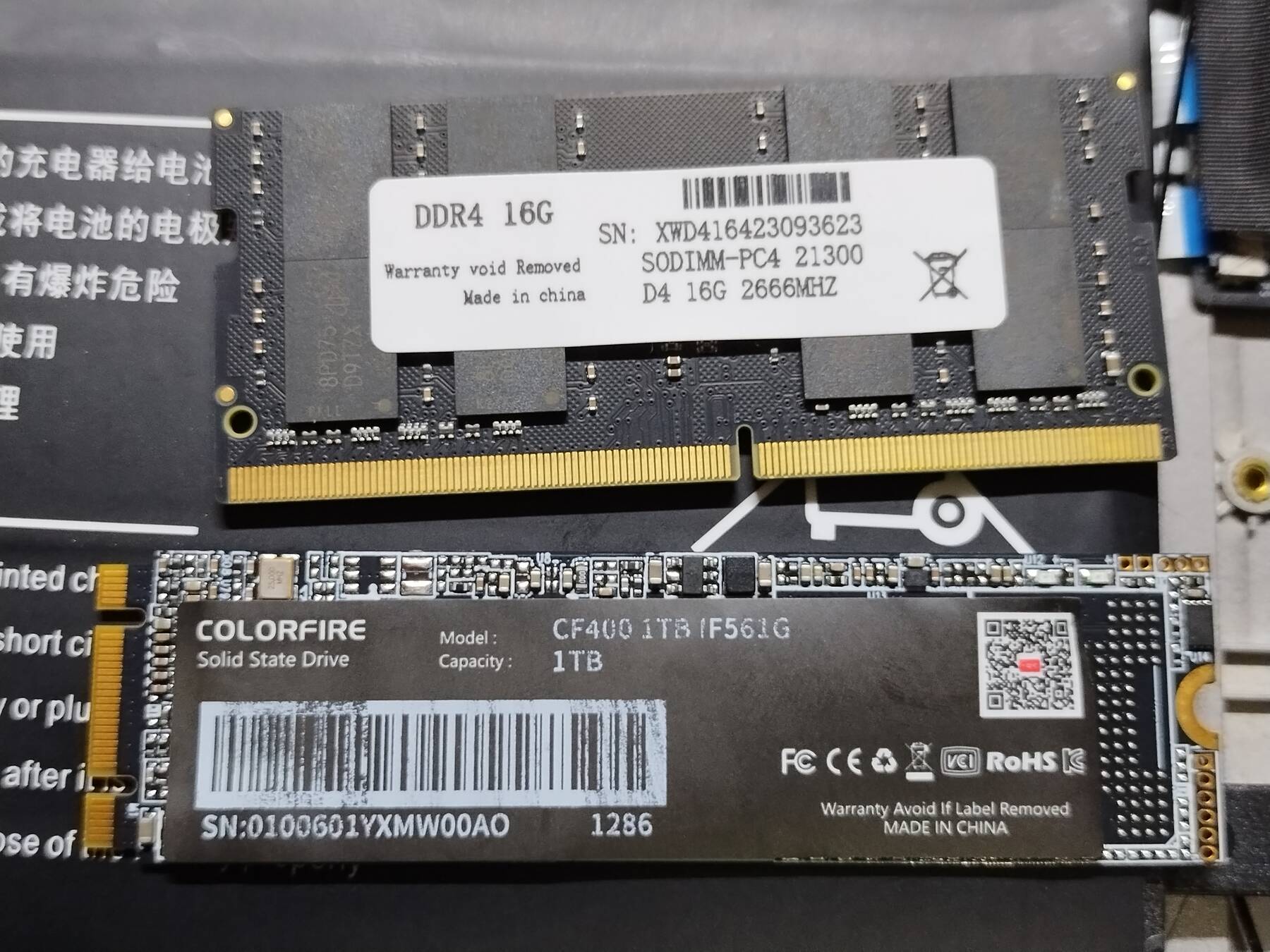

  • 1TB SSD, 16GB DDR4
  • Type C charging
  • Real Gig Ethernet

It's not a machine really worth buying. You could get much better machine for the price, but it's also got some decent specs relative to the hardware class it is in.

[2024-03-16 Sat] Linux install

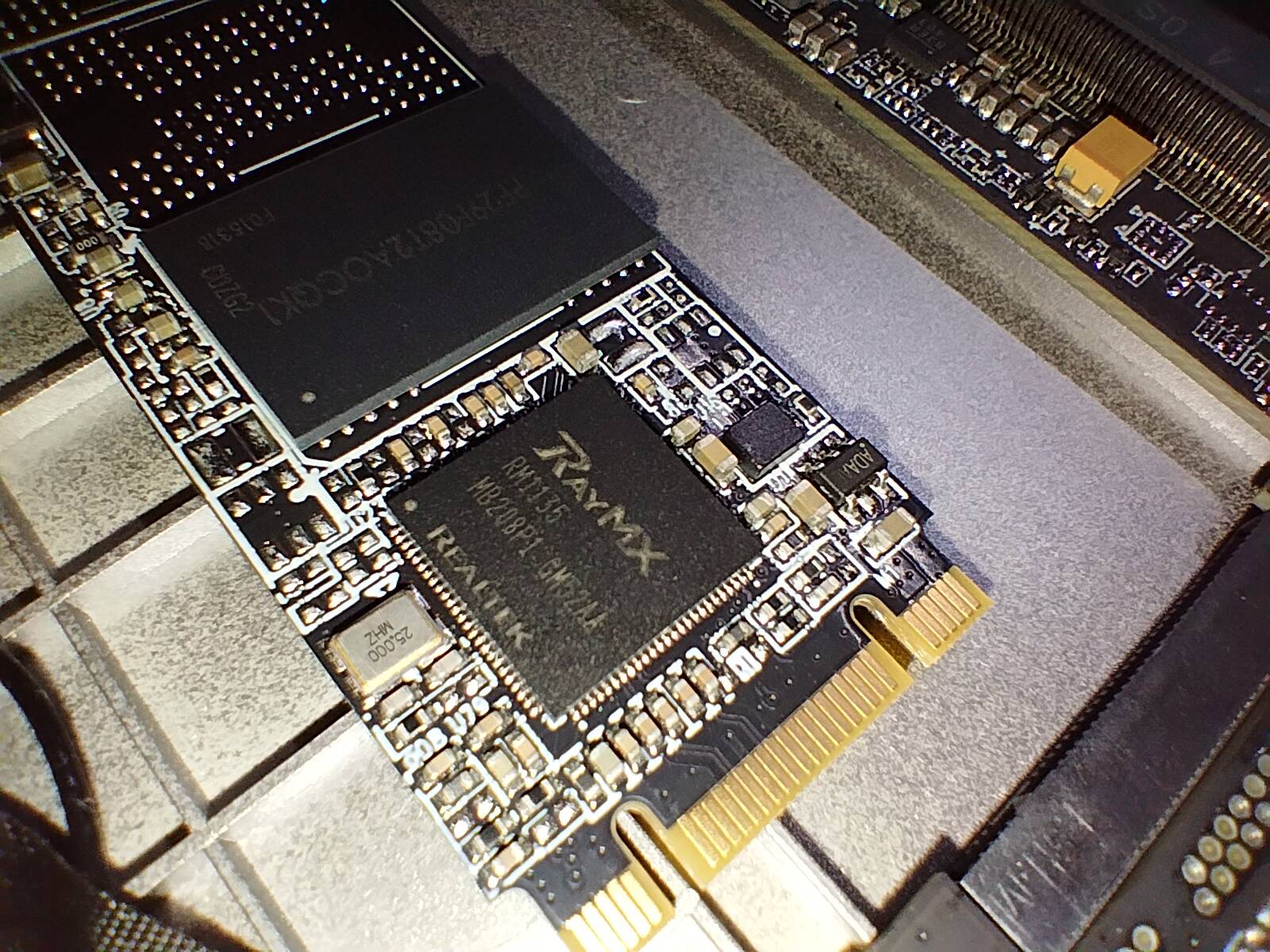

I swapped out the 1TB SSD (it's going into an enclosure to be with super) for a 256GB one.

I put some Debian on it. Surprisingly most hardware just works. I went ahead and upgraded to testing (trixie) to see if anything improved, but I didn't notice anything. Later I found out that the mini-HDMI port on N100 does not work without a 6.6 kernel, so that's a win I guess.

One issue I had was the audio pops on during boot. I 'fixed' it by disabling snd_hda_intel's powersave mode. I did still notice a pop when resuming from hibernate, and I expect suspend will have the same issue.

Listing 1: /etc/modprobe.d/audio_powersave.conf
options snd_hda_intel power_save=0

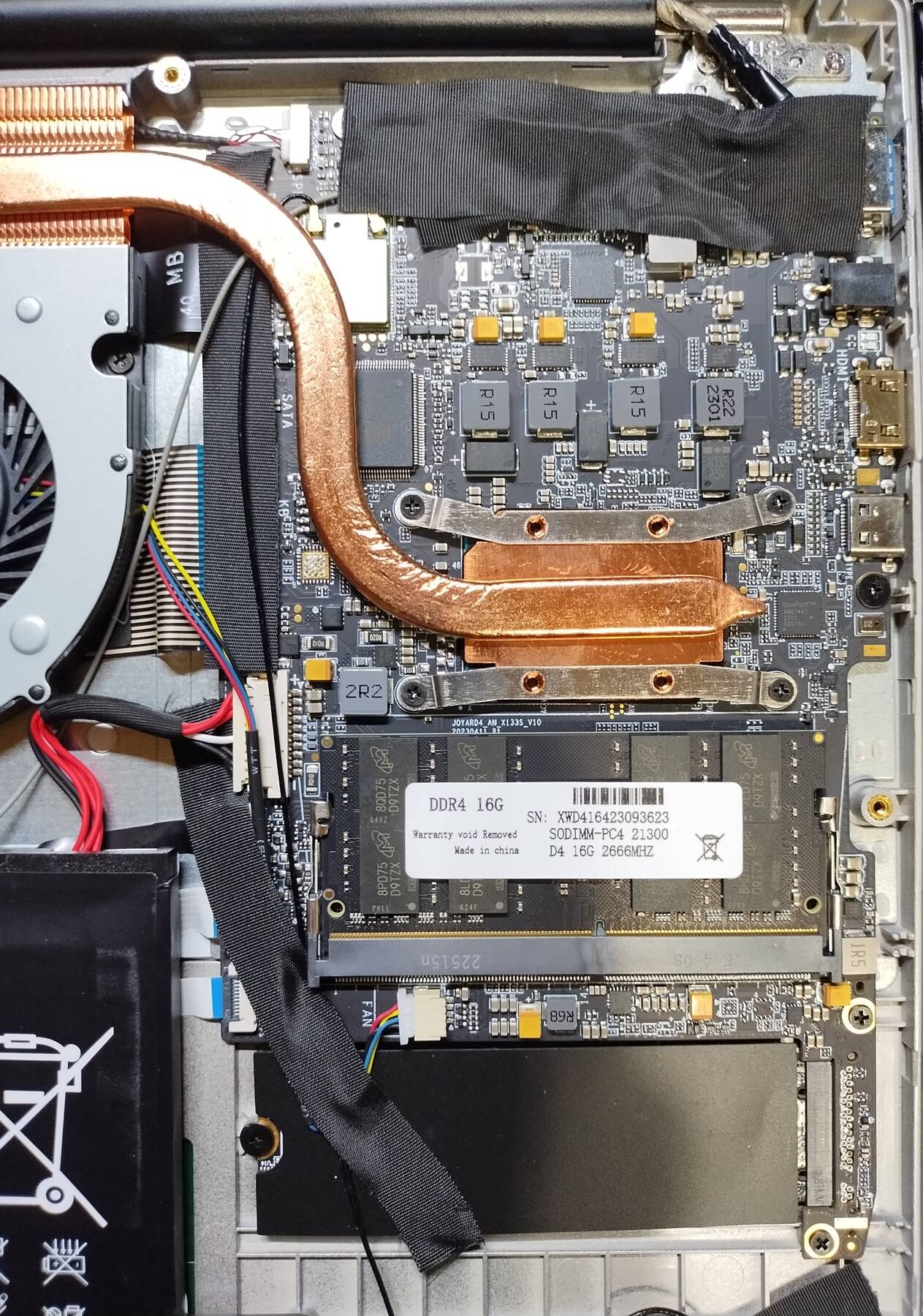

[2024-05-05 Sun] Less memory

I wanted more RAM in pixy. This had a 16GB stick. Things were swapped, and now it has 8GB.
