zephyr (Openscape Branch 50i / Advantech SYS-2USM02-6M01E)
Summary

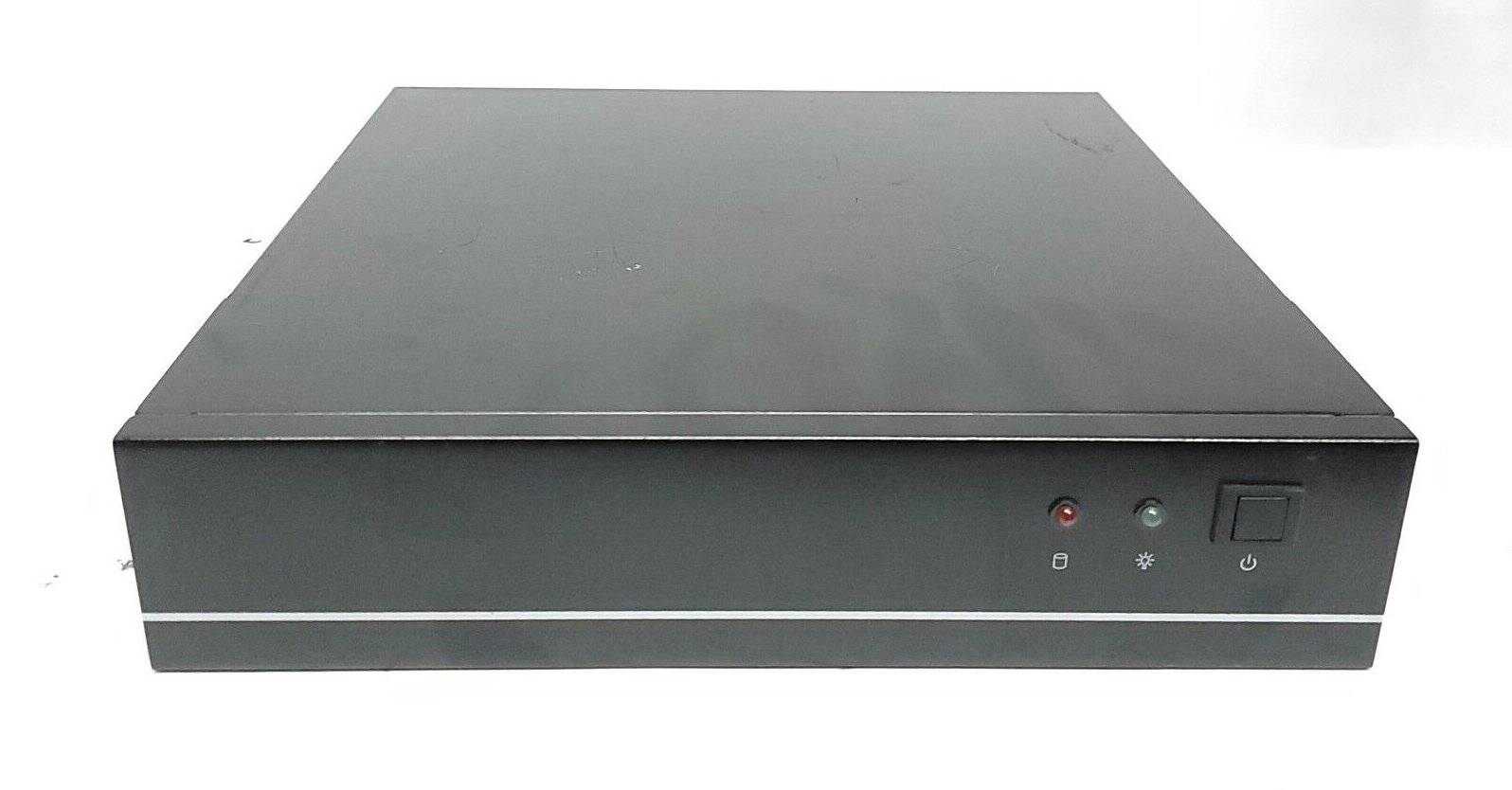

Smallish machine (like a medium pizza) with SCSI and Firewire. Everybody's favorite bus tech.
Notes

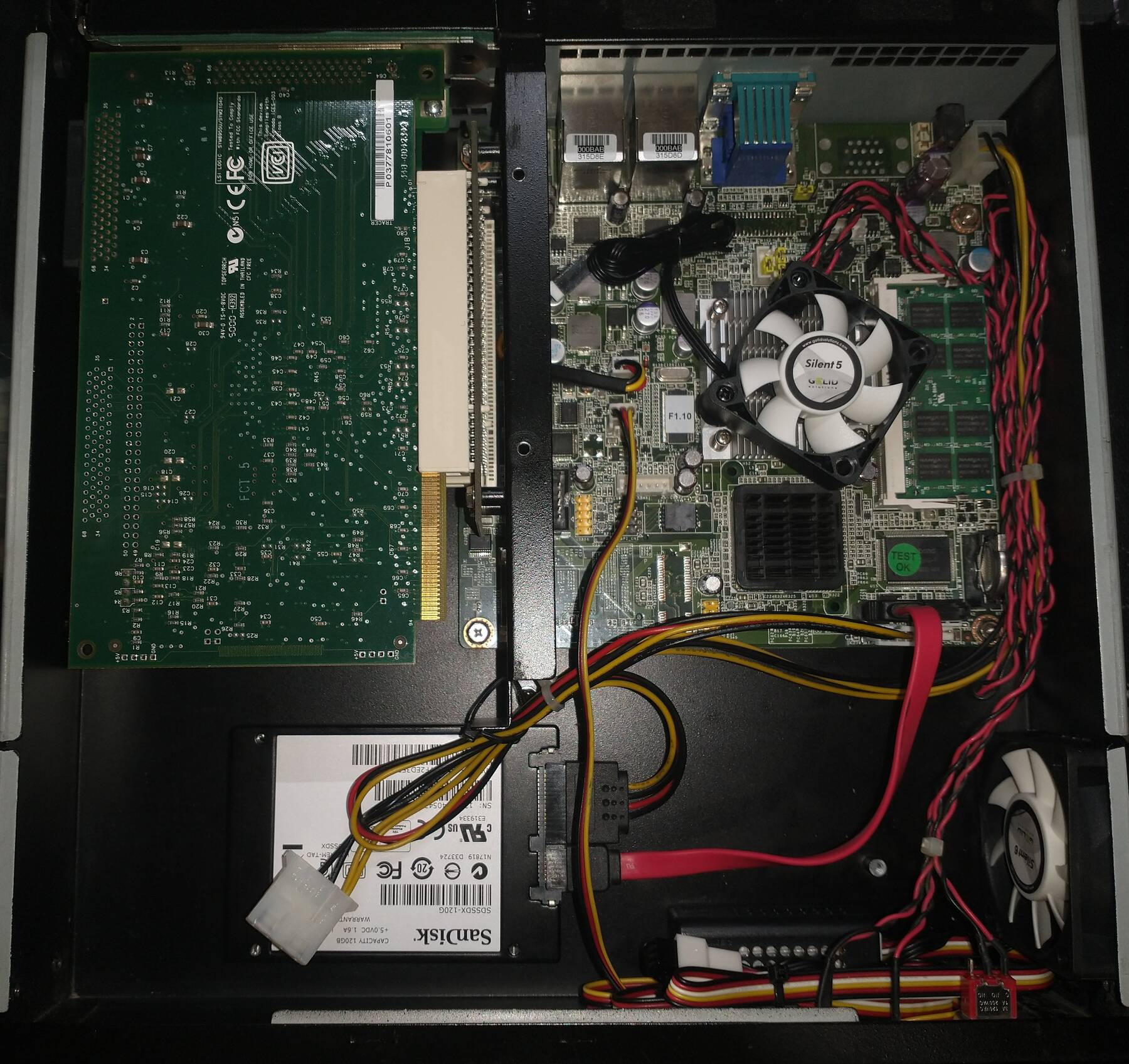

- Case fan has a zalman speed controller attached
- CPU fan has a resistor speed reducer
- SSD lacks a proper mount, using adhesive velcro strips
- Board is a stripped down variant. No CF slot, MiniPCIE, or Audio. Also short 2 serial ports on the IO panel.
- AHCI for SATA seems to cause the BIOS to hang.
Hardware
| Make | Advantech |
| Year | 2014 |
| Model | AIMB-212D |
| Chassis | SYS-2USM02-6M01E |
| Power Supply | 12V 3.4A |
| Processor | Intel Atom D510 |
| Memory | 2GB DDR2 - Memphis D2SO256M648G-A18NH |

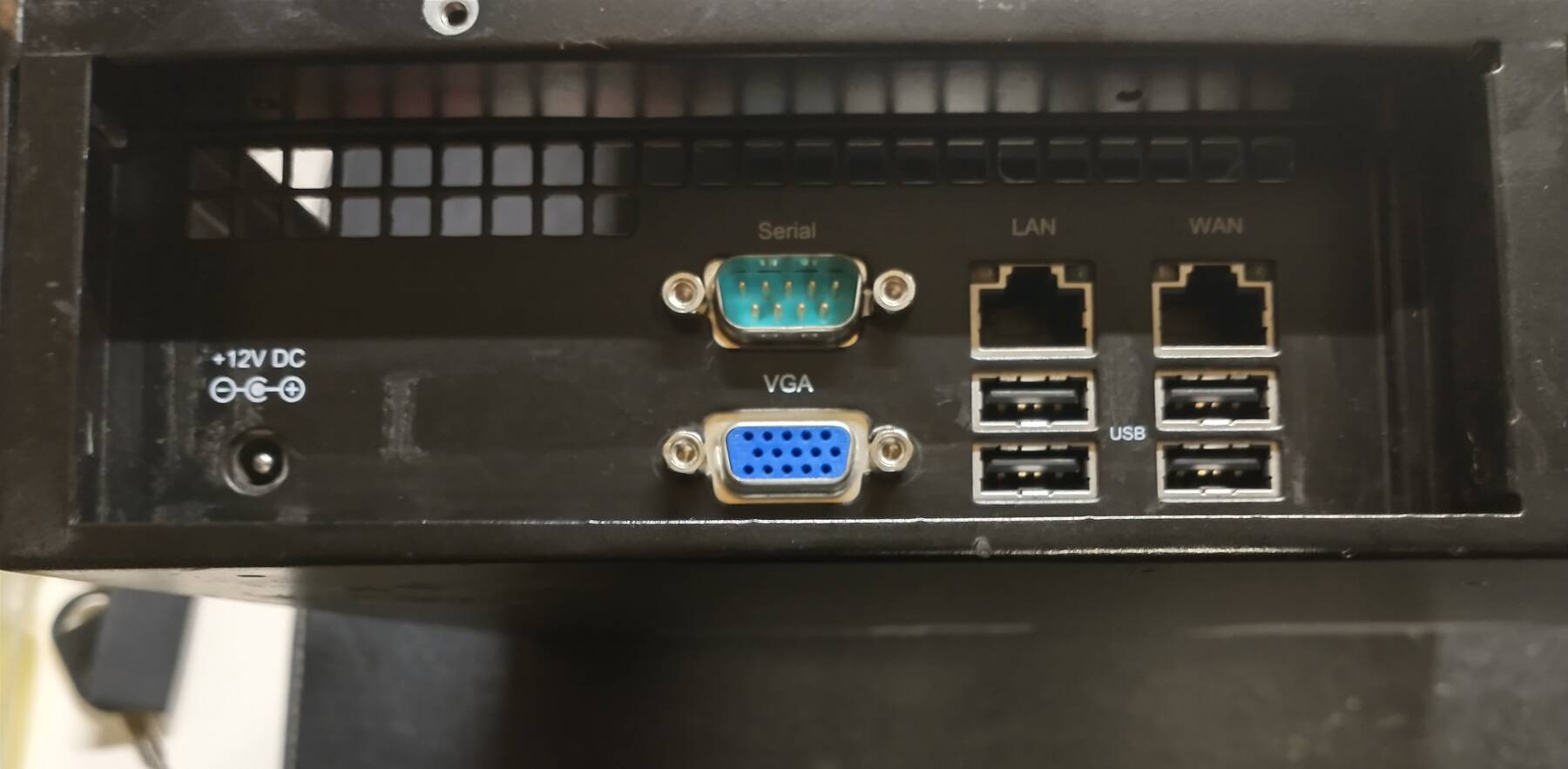

| Ports | 4x USB A 2.0 |
| 2x RJ-45 LAN | |
| VGA | |
| DB-9 Serial | |
| Graphics | Intel GMA 3150 |
| Storage | 120GB SanDisk SDSSDX-120G SSD |
| Int. Peripherals | Intel 82567V Gigabit Ethernet |
| Intel 82583V Gigabit Ethernet | |
| LSI LSIU160 SCSI HBA | |
| Adaptec AFW-4300 Firewire | |
| Ext. Peripherals | |
| Dimensions | |
| Length/Depth | 30.5 cm |
| Width | 30 cm |
| Height/Thickness | 6.5 cm |
| Weight | 3.0 kg (6 lbs 10 oz) |
Software
| Operating System | |
| Unique applications |
Links
Log
A little bus server

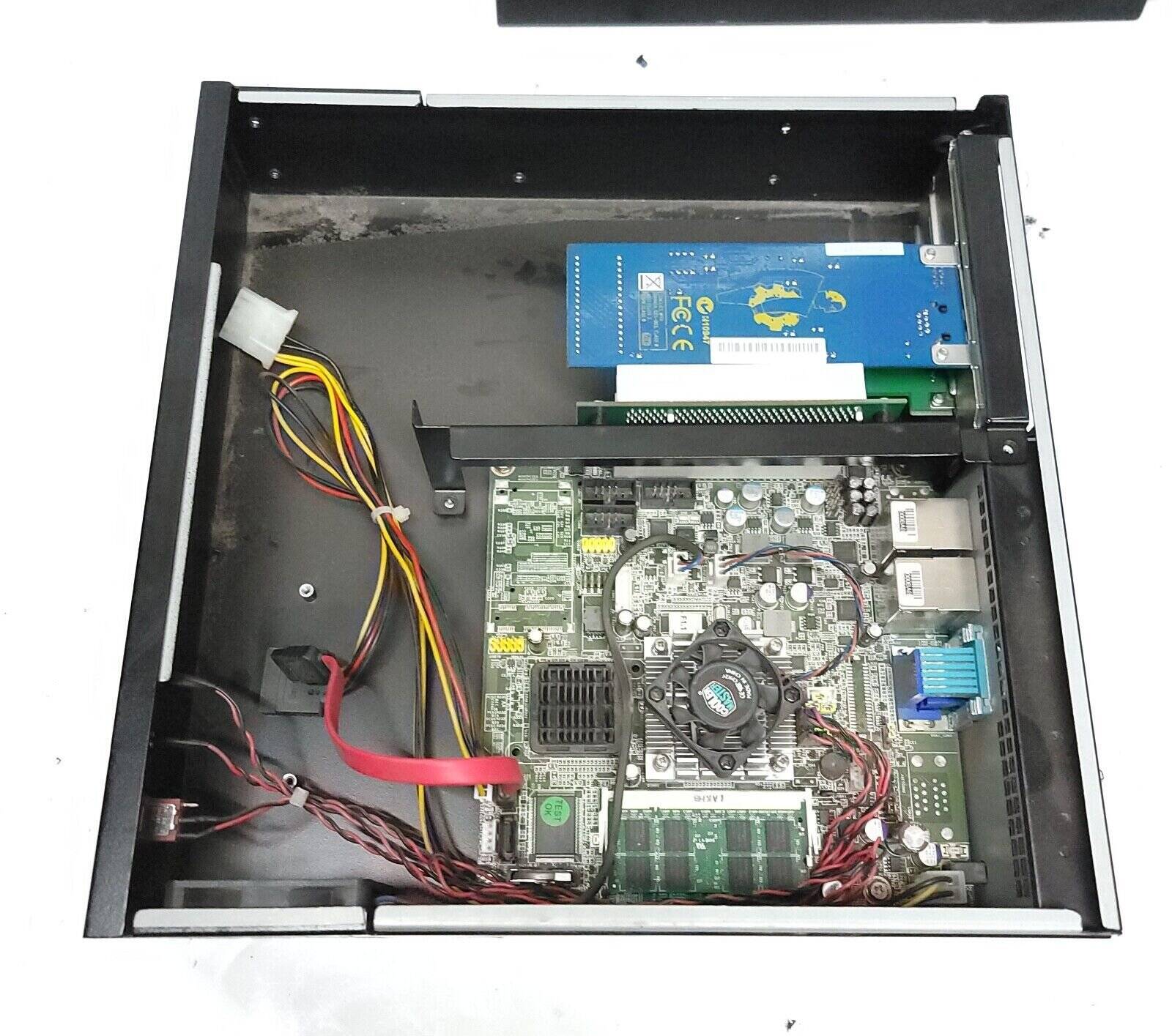

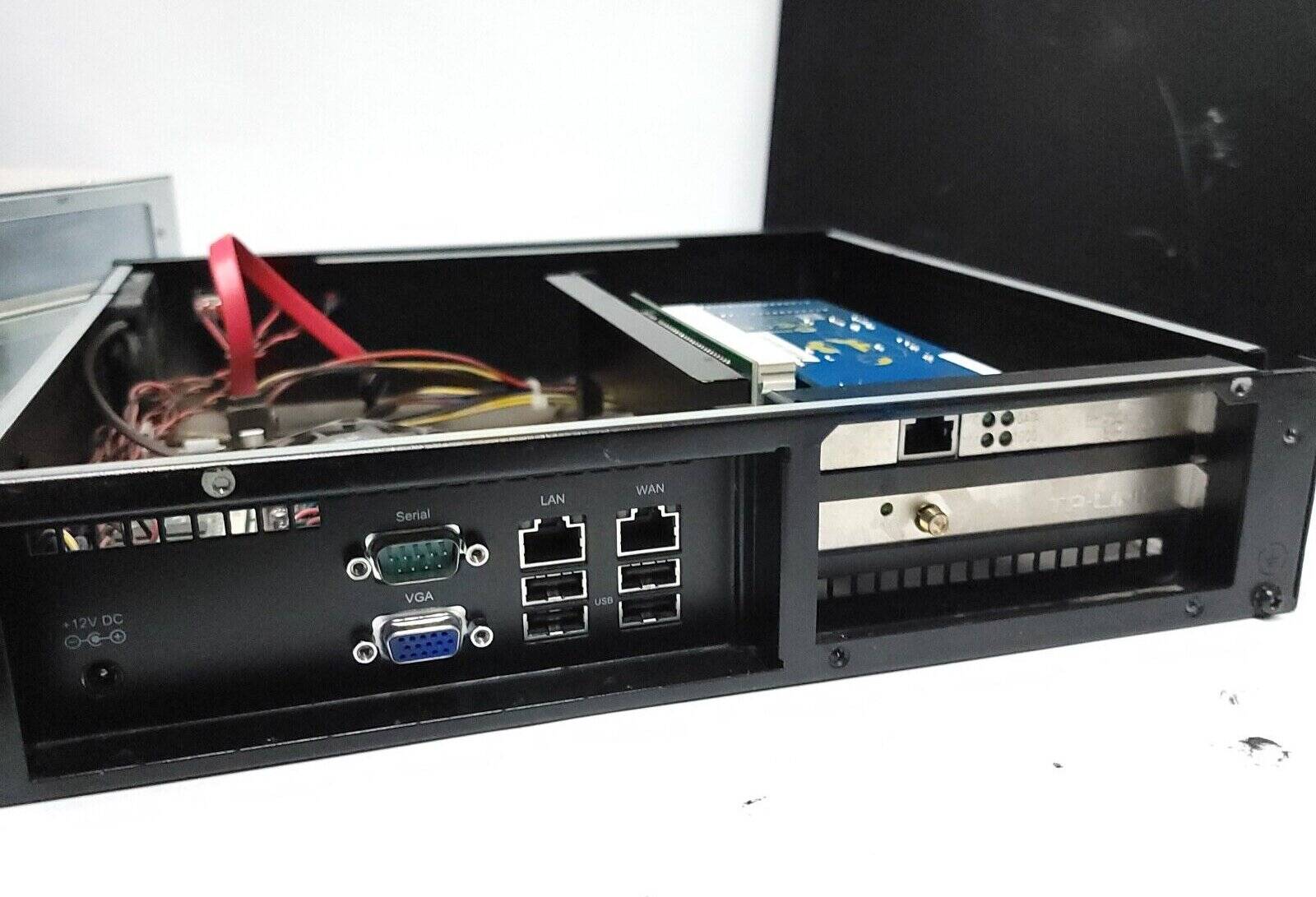

I found this little box on ebay. It had a low power, but still 64-bit CPU, and PCI expansion. For some reason it came with a wifi adapter and NIC rather than any of the phone cards that Openscape usually installs.

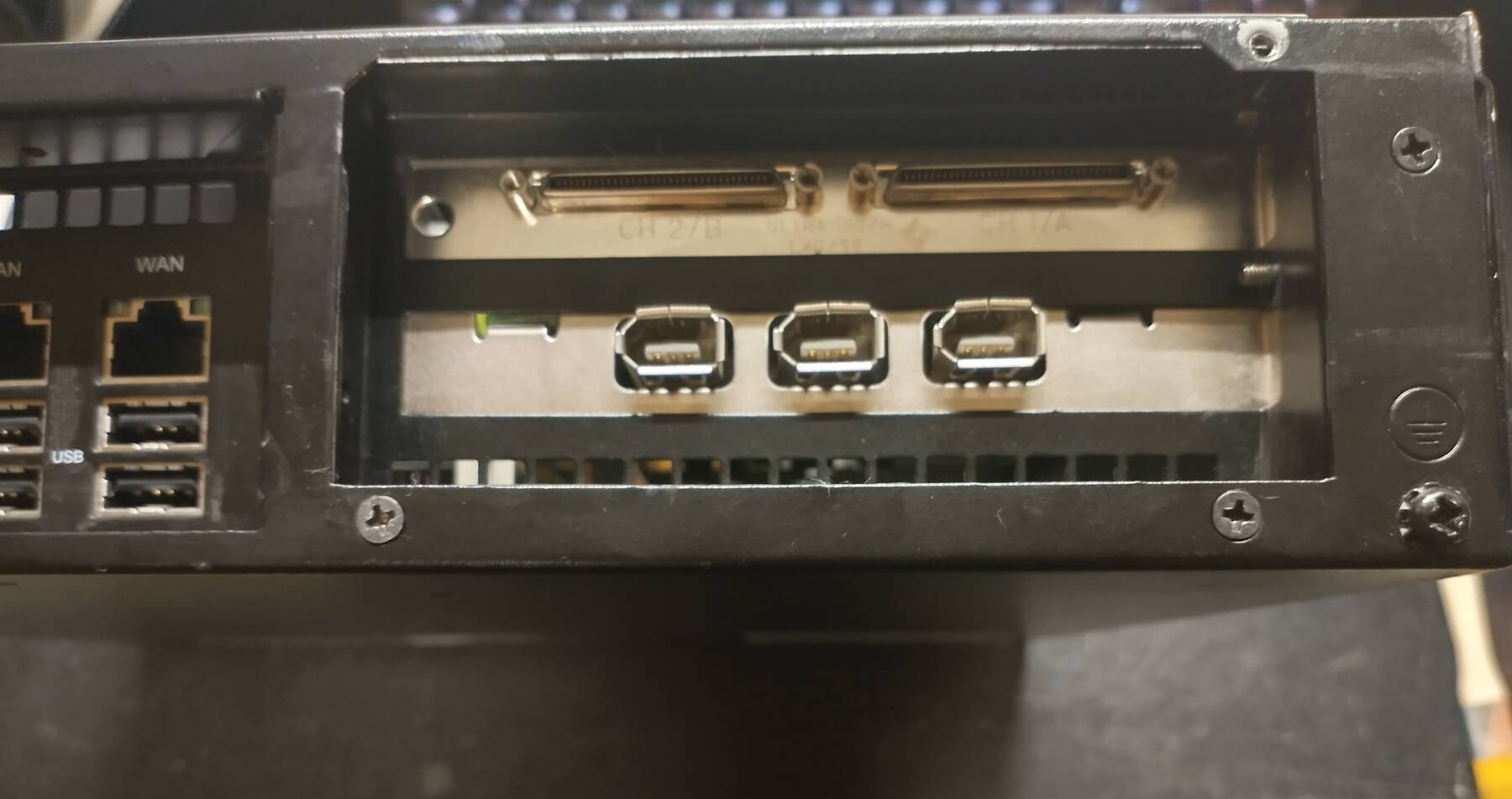

Anyway I decided this would make a nice legacy connection device. So it received my two favorite interfaces SCSI, and Firewire.

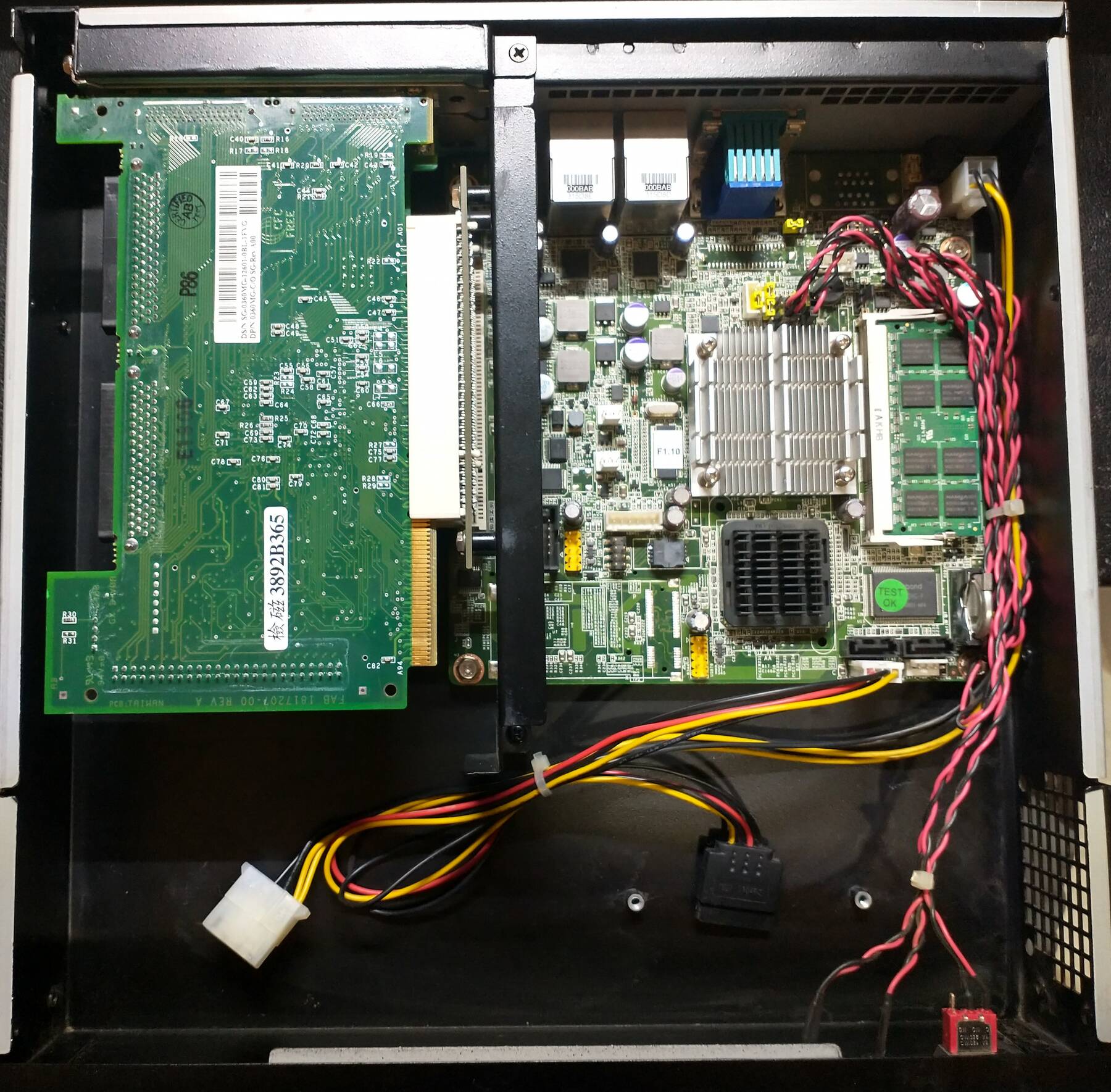

At some point I swapped the AHA-39160 for a LSIU160. It just has a single bus with internal/external 68-pin HPDB connectors.
Rattling case
The case lid rattles. I found taping the hidden inside edges with polyimide tape is a good fix. It is thin enough not to compromise fit, but tighten things up a bit. It still slides easily, and is pretty abrasion resistant. It also really cuts down on metal sliding on metal noises, great for enclosures like the AKiTiO PCIe box.
