gerbera (Marvell ESPRESSObin V5)
Summary
TODO
Notes
TODO
Hardware
| Make | Marvell |
| Year | 2017 |
| Model | ESPRESSObin V5 |
| Chassis | Snap Case by plushvoxel |
| Power Supply | 12V DC |
| Processor | Marvell Armada 3700LP (88F3720) |
| Memory | 2GB DDR4 |
| Ports | 3x RJ-45 LAN |
| USB A 3.0 | |
| USB A 2.0 (shared with Mini-PCIe slot) | |
| Micro USB (to serial) | |
| Micro SD | |
| Storage | 128GB BiWin 2240 M.2 SATA SSD (w/ SATA Adapter |
| Int. Peripherals | Topaz Gigabit Ethernet Switch (3-ports) |
| Intel Wireless AC 7260 WiFi | |
| PL2303 serial console | |
| Ext. Peripherals | - |
| Dimensions | |
| Length/Depth | 11.8 cm |
| Width | 8.4 cm |
| Height/Thickness | 4.8 cm |
| Weight | 0.23 kg (8 oz) |
Software
| Operating System | |
| Unique applications |
Log
A more modern Marvell SBC
Bought a used board. It came with a nice box, bare board, 8GB micro sd card, power supply, and micro usb cable.
Took a bit to figure out there were different revisions, and the official cases don't fit because they combined two RJ-45s into a single module.
It boots ubuntu xenial, but with a seemingly unpackaged kernel/uboot.
Building

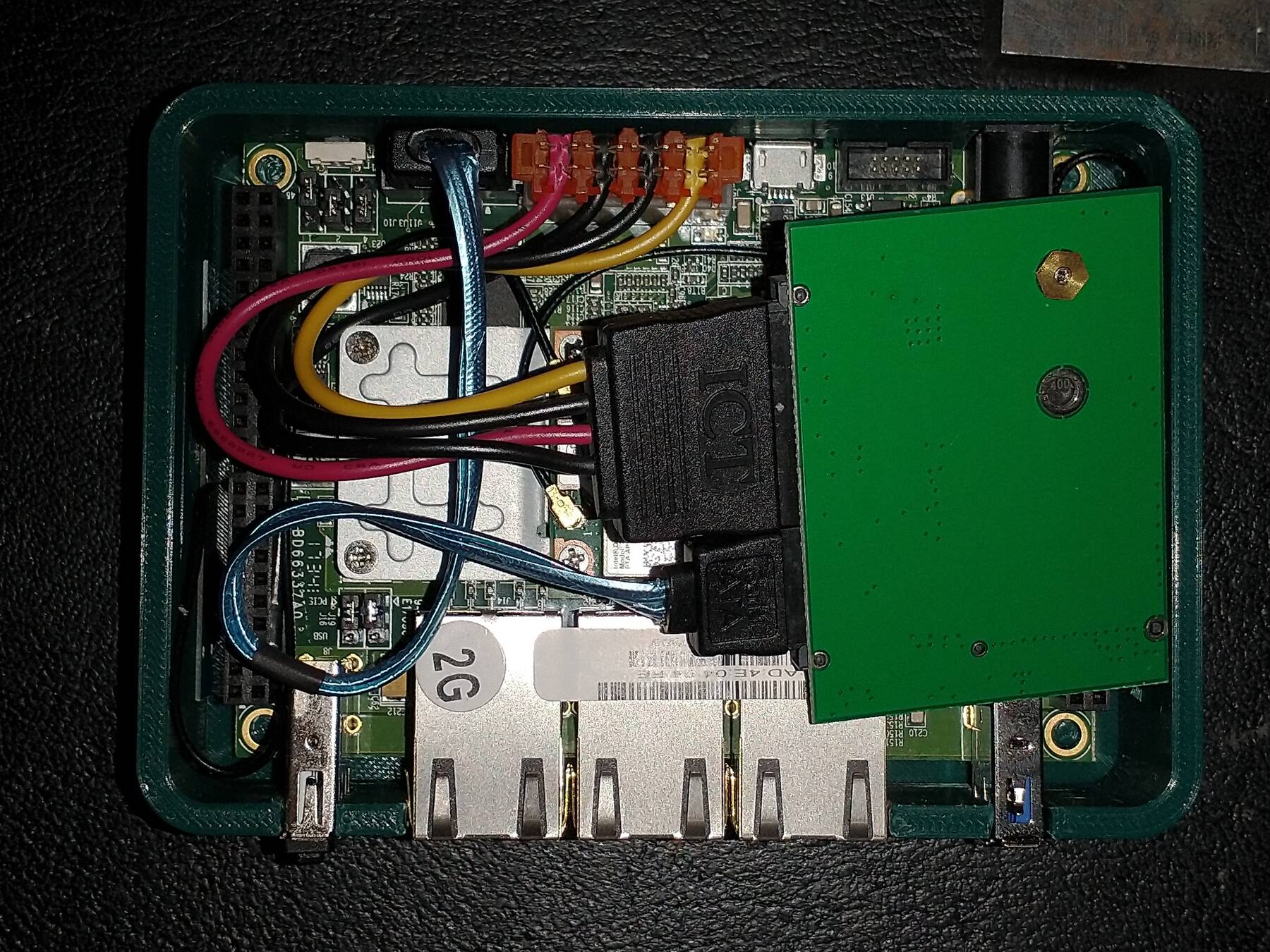

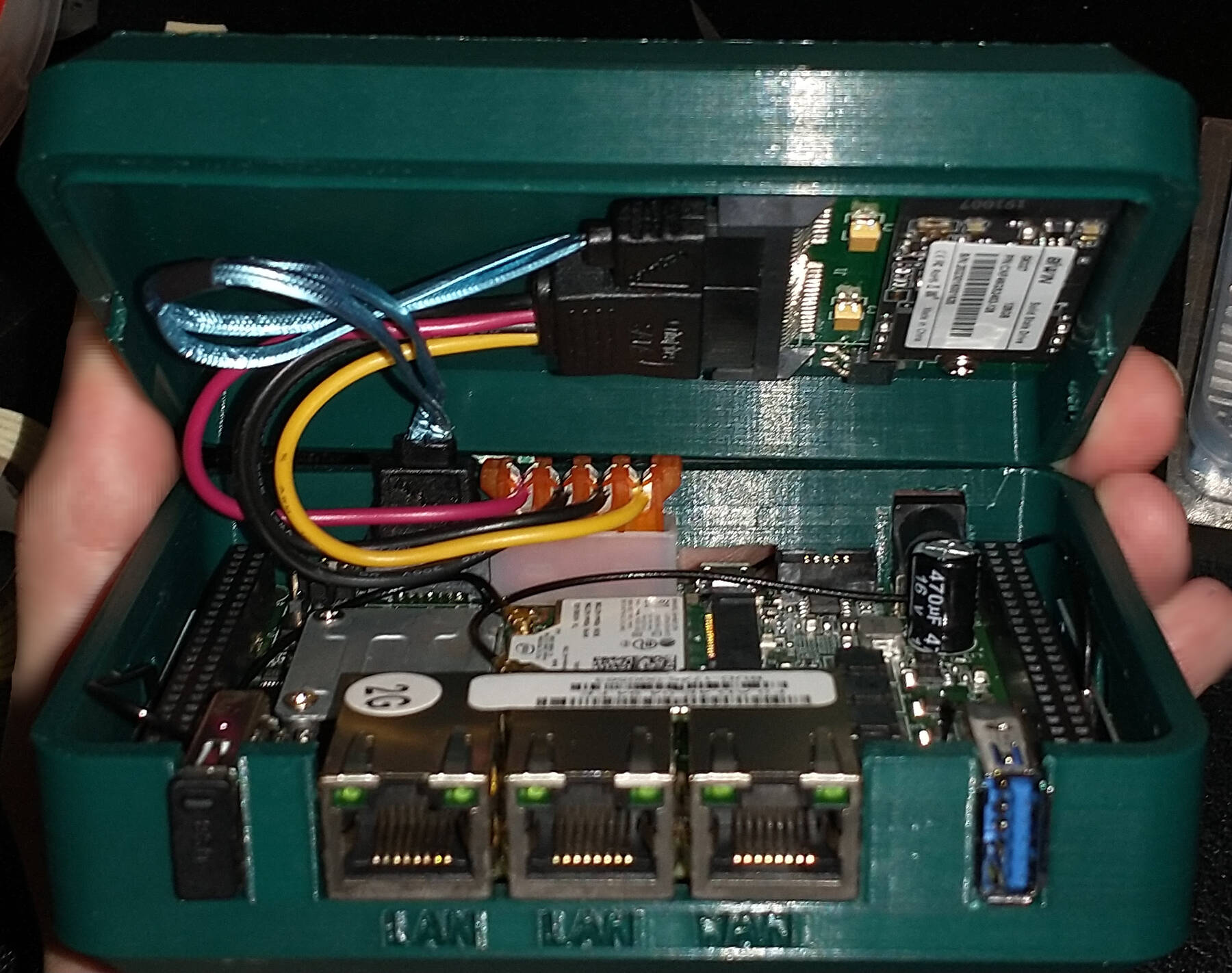

Got this thingiverse snap case by plushvoxel made up. I collected some other bits to make it go together.
- stick-on pcb based wifi antennas
- M.2 2242/2230 to SATA PCB with 3.3V regulator (ebay)
- BiWin 128GB SSD I pulled from GPD MicroPC
- 5" thin SATA cables
- Intel 7260-HMW mini-pcie card w/ full-length extender
I had to make up a molex sata power cable. Case was too short to allow a normal molex to fit. I probably could have cut it down and made it work, but I found a IDC style molex instead that was much lower profile.

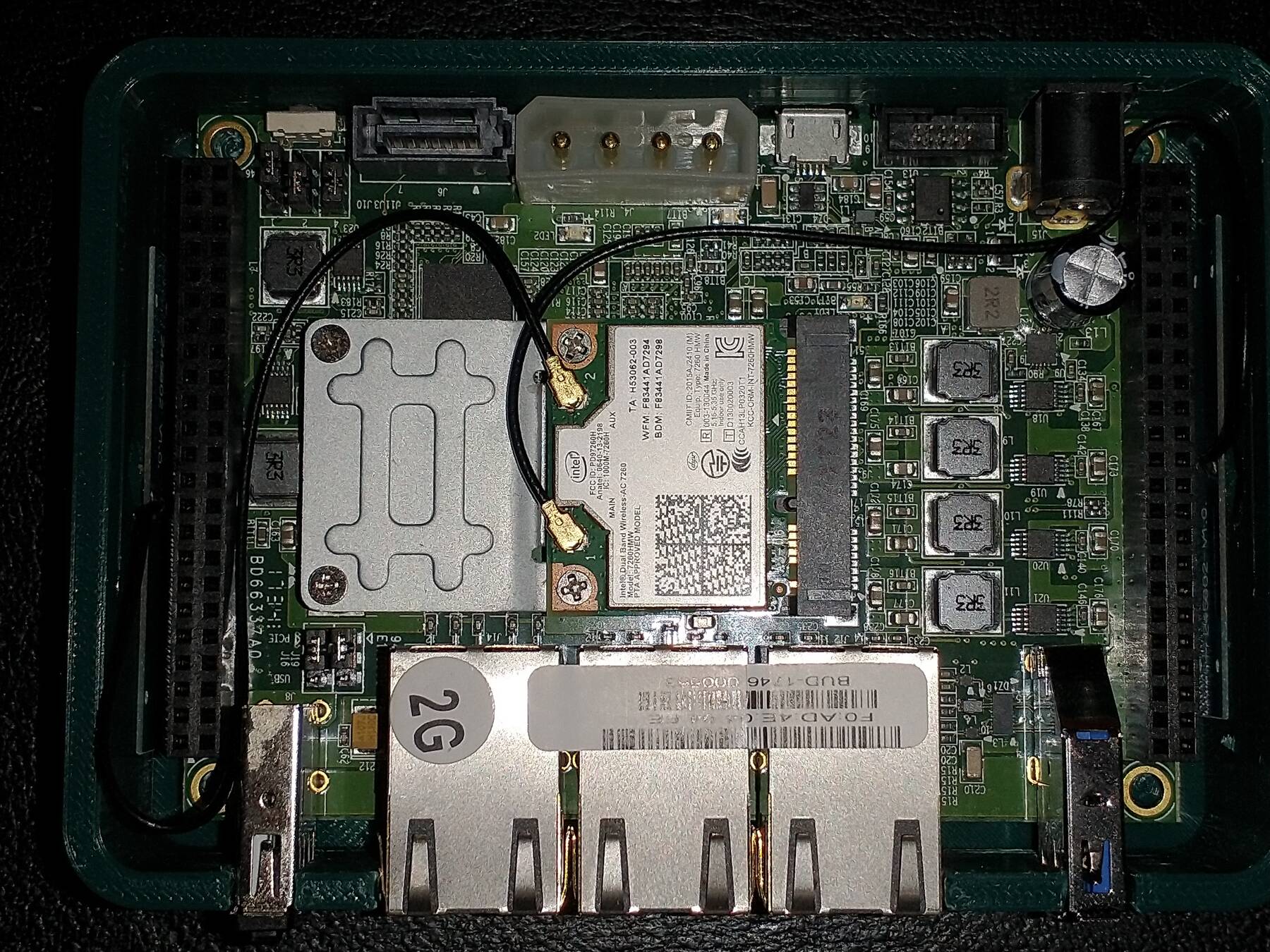

The marvell chip needs some heatsinking. I stuck a copper one on and it still get quite hot. Remains to be seen how it will hold up under a load.
