cobra (i5-4670K in CM Elite 110)
Summary
TODO
Notes
TODO
Hardware
| Make | Custom |
| Year | 2014 |
| Model | Asus H97I-PLUS |
| Chassis | Parsec Labs HyperQ Storage Appliance |
| Power Supply | Sparkle SPI350U4BM8 (temporary) |
| Processor | Intel Core i5-4670K |
| Memory | 16GB Kingston DDR3-1600 K66GKY-HYA S2Q87U |
| Ports | PS/2 Combo Keyboard/Mouse |
| 4x USB A 3.0 | |
| VGA | |
| DVI | |
| DisplayPort 1.2 | |
| HDMI 1.4 | |
| 4x USB A 2.0 | |
| RJ-45 LAN | |
| Optical S/PDIF out | |
| 3.5mm Line In | |
| 3.5mm Line Out | |
| 3.5mm Mic In | |
| Graphics | Intel HD Graphics 4600 |
| Storage | 128GB Yottamaster M.2 SATA SSD |
| Display | - |
| Int. Peripherals | Intel I218V Gigabit Ethernet |
| Realtek ALC887 audio Codec | |
| Ext. Peripherals | |
| Dimensions | |
| Length/Depth | |
| Width | |
| Height/Thickness | |
| Weight | kg (lbs oz) |
Software
| Operating System | Debian 13 |
| Unique applications |
Links
Log
Old setup, new hostname
This is largely the same hardware that used to make up strike. See Parsec Labs Case for the original build.

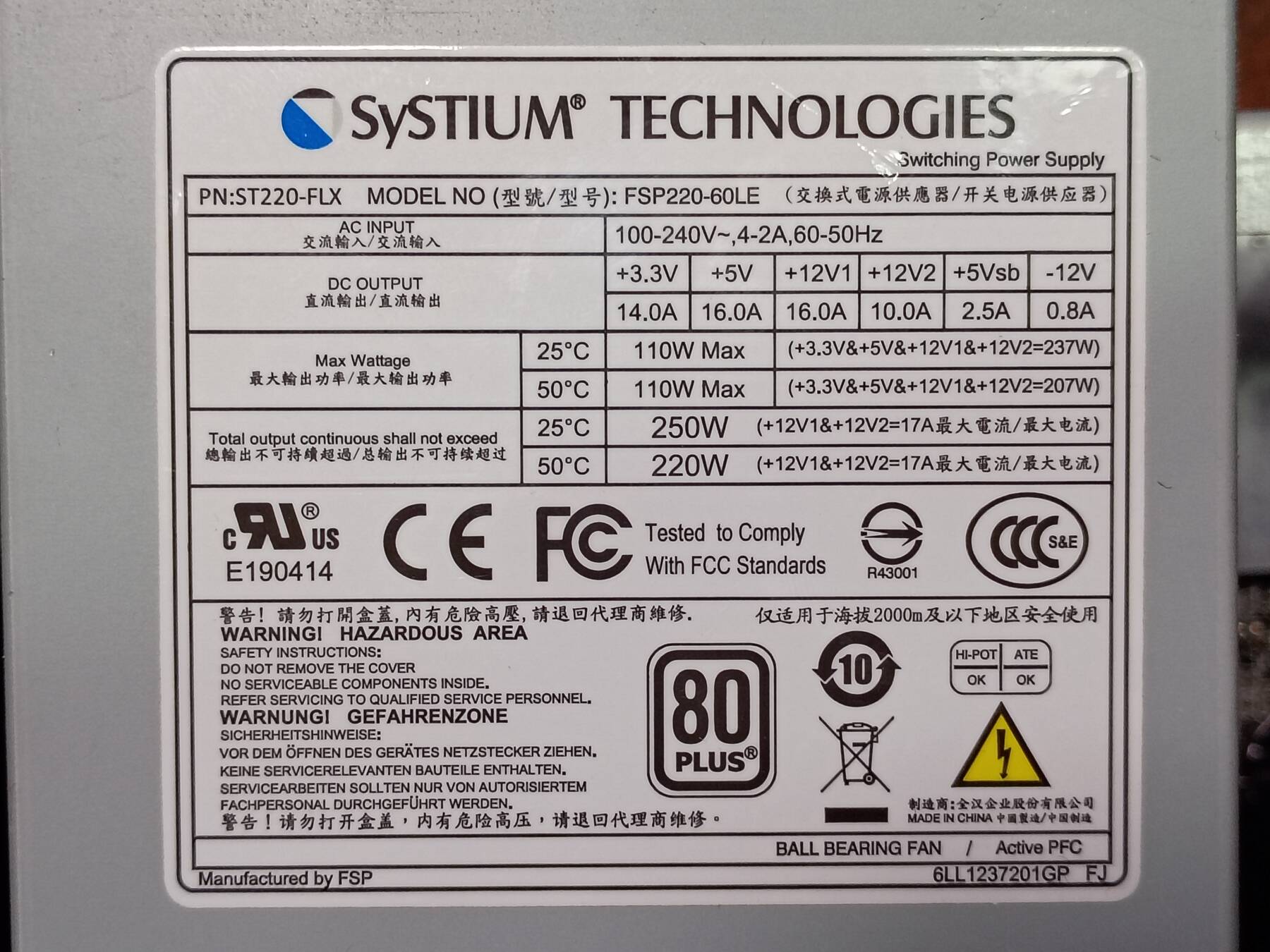

I'm using the original flex-atx supply that came with the case, and I'm not bothering with the extra ducting for now. PCIe slot riser is left empty for testing cards. Currently only a SATA M.2 drive is installed.

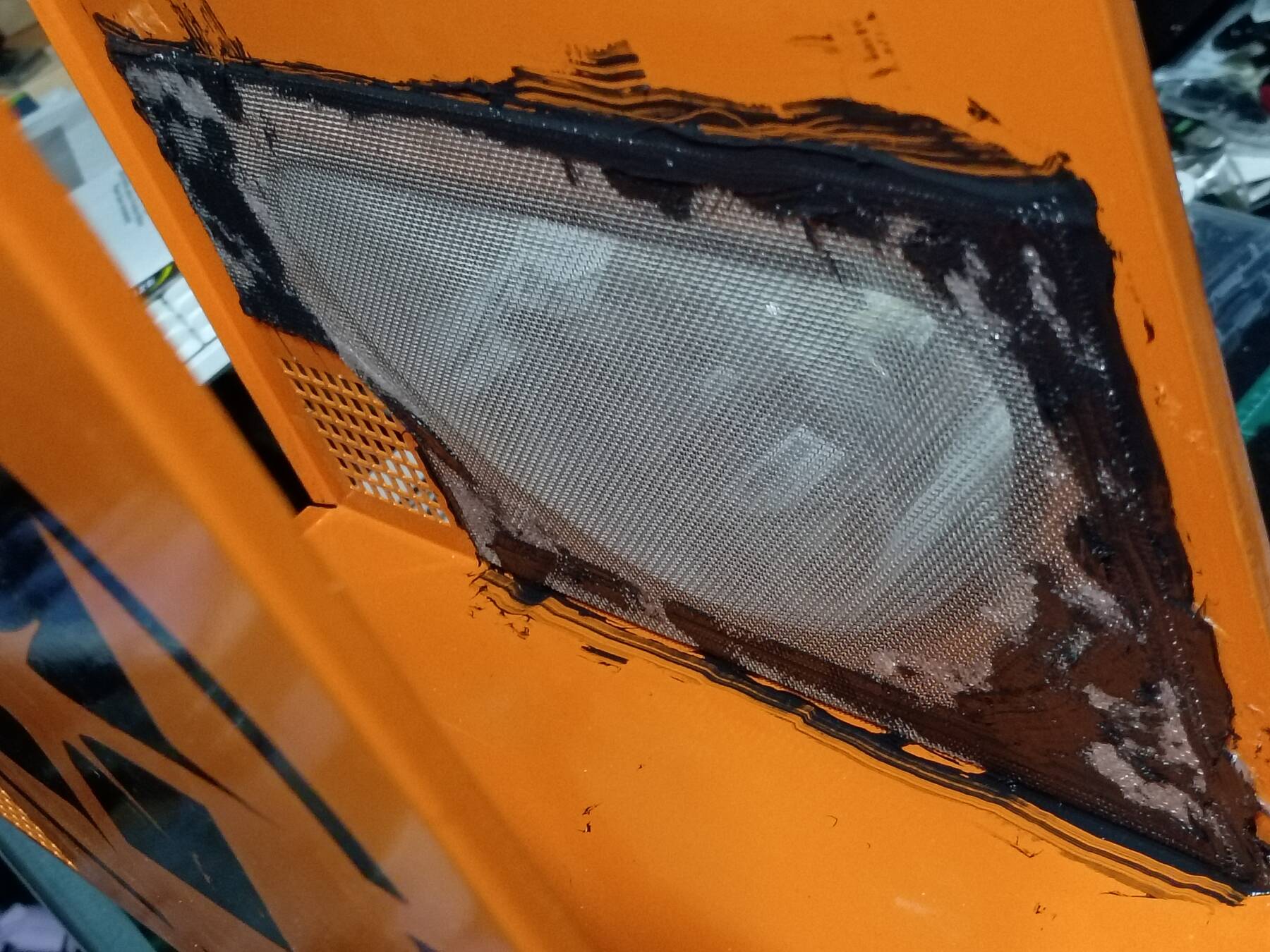

When I was putting it back together I needed to re-glue the front metal grill to the cast aluminum front plate, and I also took the time to attach my side mesh better with the same black silicone.
Different case, new heatinks for RAM and CPU, Needs PSU
I got a Ocypus Delta A62 EXS BK tower heatsink, and some 'Rageer' RAM sinks.
I decided to move this into the CoolerMaster Elite 110 case. It is going to need some work, and maybe a new power supply. I tried getting my 1U Sparkle SPI350U4BM8 PSU in, but it blocks too much of the front intake in the feasible positions. I could see using a flex ATX, or SFX supply mounted up front.
The Ocypus has a bad screw stud on the Intel bracket, so one isn't fully seated. It uses an oddball thread, I think #6-40. I don't have die, and wouldn't be able to run it all the way anyhow. I worked it a bit, and got it to seat better, but I think it is shifting the heatsink's nut screw threads.
The RAM sinks are just thin aluminum, same plastic spacer bits, and adhesive. I removed the face stickers so they have a bare aluminum look now.
