adzam (Raspberry Pi 3 B+ - Phone network)
Table of Contents
Summary
TODO
Notes
TODO
Hardware
| Make | Raspberry Pi |
| Year | 2018 |
| Model | 3 Model B + |
| Chassis | iUniker ABS case |
| Power Supply | 5V Micro USB (2.5A) |
| Processor | Broadcom BCM2837B0 - 4 cores 1.4 GHz |
| Memory | 1GB DDR2 |
| Ports | 4x USB A 2.0 |
| RJ-45 LAN | |
| HDMI 1.3 | |
| 3.5mm Stereo/Composite | |
| Graphics | Broadcom VideoCore IV |
| Storage | |
| Int. Peripherals | LAN7515 USB 2.0 Gigabit Ethernet |
| Ext. Peripherals | Sabrent USB Sound Card |
| US Robotics USR5637 Modem | |
| E2210 Telephone Line DAA Interface | |
| Dimensions | |
| Length/Depth | |
| Width | |
| Height/Thickness | |
| Weight | kg (lbs oz) |
TODO
Software
| Operating System | Debian |
| Unique applications |
Links
- [[][]]
Log
A Pi for me
I bought this with some other junk from Micro Center.
The PBX board

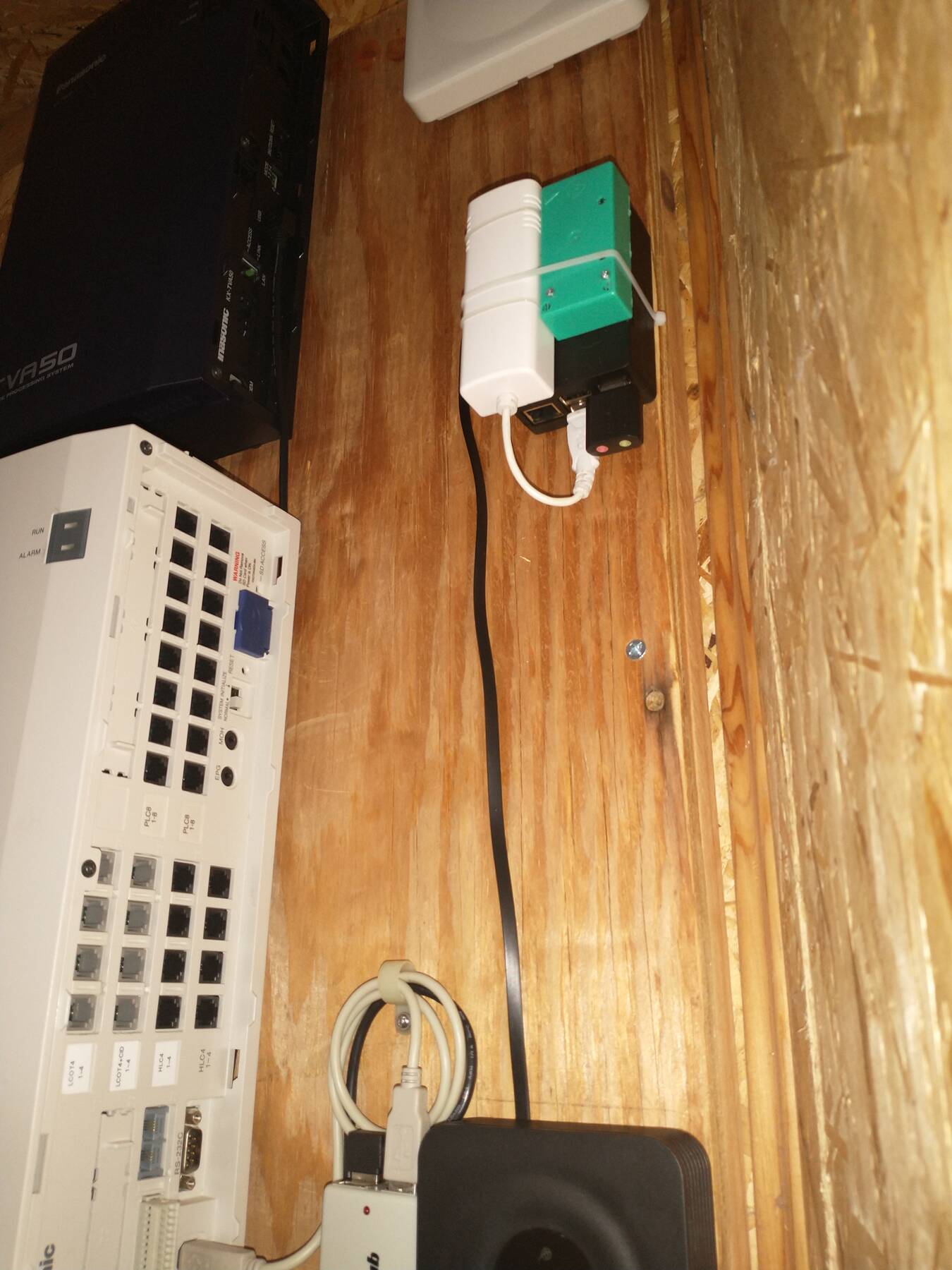

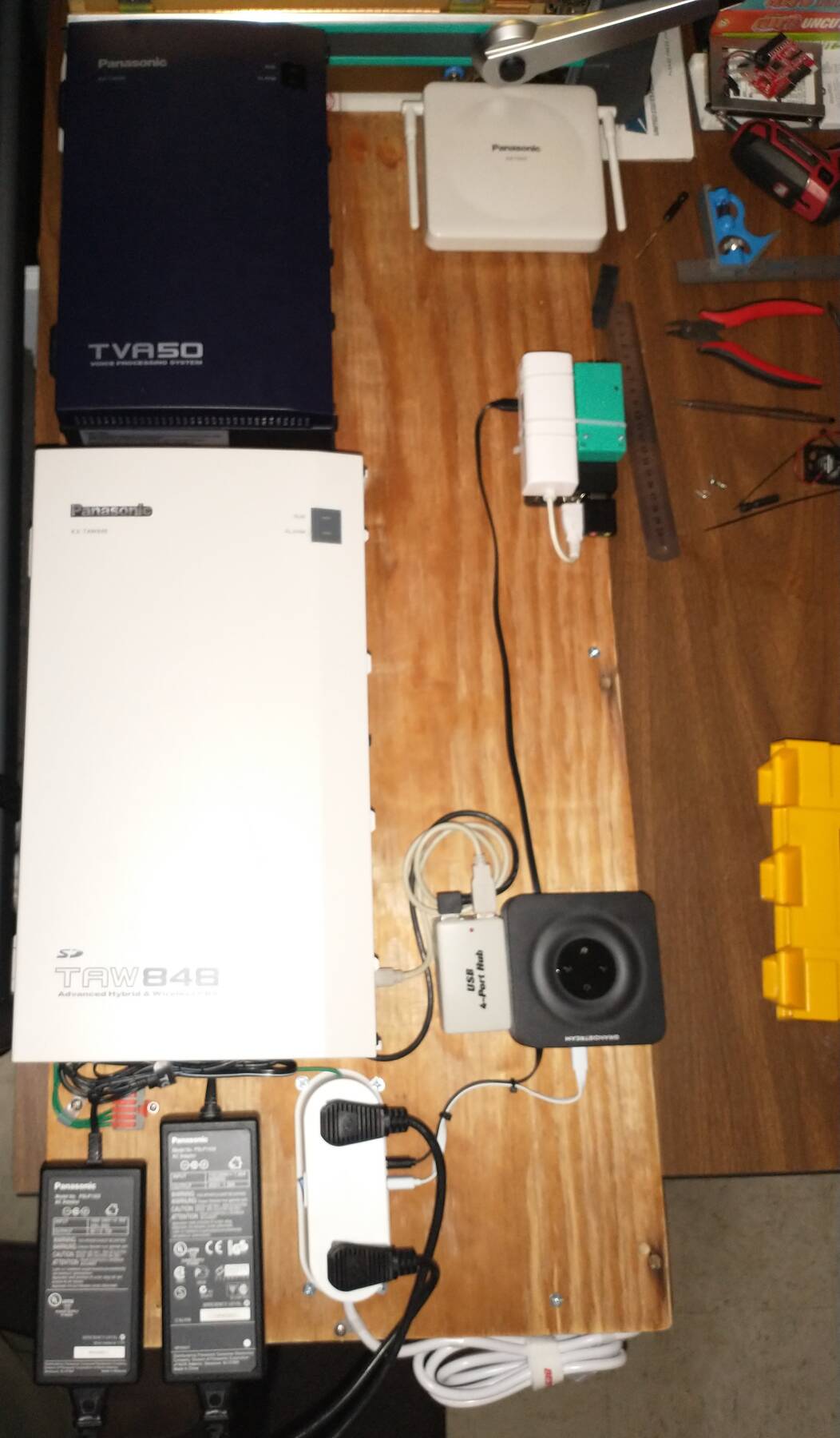

I put this Pi on a board with my PBX. It has some things attached to it, but I never got around to doing functional tasks with it. It looks like:
